Highest quality

Made in Germany

Universal-Kitchen Machine SUPRA 6e

consultation





SUPRA 6e

Processing options and application

grating , shredding, straining, chopping, dicing, stirring, beating, kneading, cutting, mincing, steaking, tenderising, strips cutting

  • Catering Kitchens
  • Hotels, Restaurants, Bars
  • Supermarkets
  • Catering and catering companies
  • Food manufacturing companies
  • Fruit and vegetable processing

Watch the video

Discover the capabilities of the SUPRA 6e

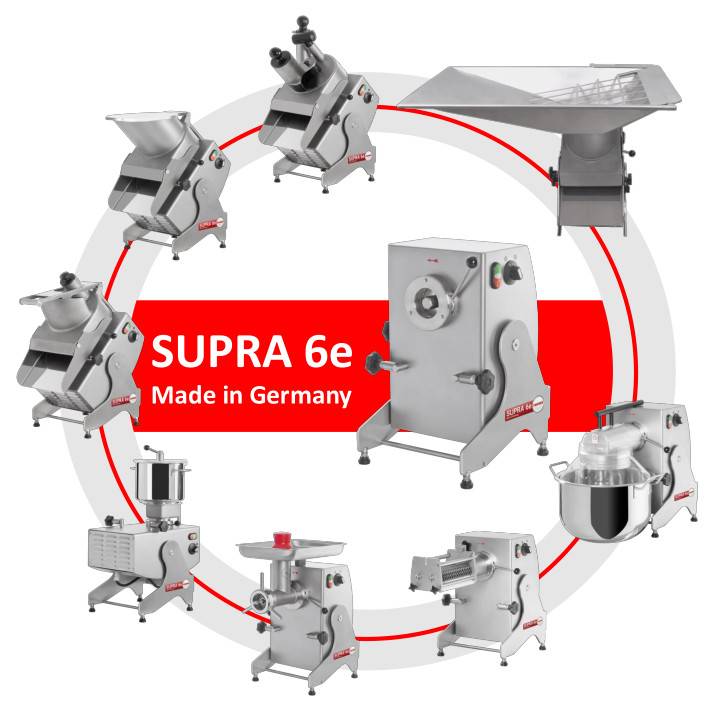

Accessories

Modular system for your application

The SUPRA 6e gives you a large selection of attachments for everyday kitchen activities. This is based on the AE 6e or AE 6e-T drive unit (with timer).

  • versatile applications
  • high performance, fine adjustment
  • rust-proof surfaces
  • best processing quality
  • easy and logical handling

Vegetable Cutting attachment UGS

With double safety switch, for cutting, shredding, grating, dicing and straining, consisting of the cutting housing and cover with pressure flap and Ø 60 mm cutting tube, made entirely from stainless steel, incl. Ø 58 mm pusher

Straining and grating attachment

In use with vegetable cutting attachment UGS

Gourmet attachment

Cover for the gourmet attachment now specially available for the vegetable cutting attachment UGS to cut small cubes (brunoises) or crossed wavy cuts (gaufrettes-waffle cut). However, the entire range of discs can be used for all other types of cuts.

Meat and vegetable mincer R 70

Stainless steel mincer with magnetic safety devise, power at 4.5 mm disc – approx. 150 kg / h. Dishwasher safe including accessories, consisting of: pre-knife, cross knife, 4.5 mm perforated disc, stainless steel tray, 15 mm insertion ring, extendable hook.

Cutter attachment CA 35

For all standard SUPRA appliances and for cabinets and kitchen appliance systems. For coarse chopping, emulsifying, kneading and grinding of vegetables, meat, fish, fruit, nuts, etc. The processing quantity lies between 100 g and 1.5 kg for chopping, meat and vegetable pies, pulped dishes, emulsions and sauces, etc. 2 rotor speeds of 1400 and 2800 rpm, filling opening to add products while the device is in operation. Tool-free assembly/dismantling of the blade shaft and stainless steel pot.

Planetary stirring, beating and kneading attachment as UP 15 (15l) or UP 10 (10l)

with electromagnetic safety switch, complete with planetary stirring head, kneading hook, mixer and whisk, incl. cover and 10 l tub or 15litre bowl.

Steaker / Tenderizer / Strip cutter / Salad Strip Cutter

  • Steaker consisting of hood and compact steaker cutting roller set to tenderize the meat
  • Tenderizer 4,0mm and hood to soften and enlarge the meat
  • Adjustable Tenderizer 1.0 - 5.0mm and hood to soften and enlarge the meat
  • Strip cutter / Salad Strip Cutter consisting of hood and compact cutter roller set with cutting widths 3.3 mm; 5.0 mm; 10.0 mm; 20.0 mm and 25.0 mm

Installation options

Tailored to your requirements

SUPRA 6e adapts exactly to the needs of your kitchen and integrates perfectly with the available space.

  • integrated workplace tailored to your kitchen
  • versatile modular system
  • planning- and installation-friendly
  • compact, easy-to-clean, hygienic

Mobil cabinet

For drive unit AE 6e or AE 6e-T, for storing kitchen appliance accessories; with 4 castors, all lockable; design with 50 mm plate as well as additional plastic pull-out extension for bowls; with integrated drip edge;

Dimension: 500 x 600 x 600 mm (W x D xH)

Mobile underframe with side rest

Sturdy stainless steel tube design, 3 lockable castors, also available without the side rest.

Machine cabinets

To use the SUPRA 6e, the drive unit can easily be pulled out of the machine cabinet. The cabinet in which the drive unit is located has an integrated door that can be closed at the bottom. There is also a larger version of the cabinet with an accessory on the left or, if desired, the right. The creation of machine cabinets with different dimensions are available on request.

Dimension of 500 mm wide cabinet: 500 x 700 x 900 mm (W x D x H)
Dimension of 1300 mm wide cabinet: 1300 x 700 x 900 mm (W x D x H)

Cutting options in Detail
  • stainless steel
  • best workmanship quality
  • disc diameter 210 mm

FEUMA profesjonalne urządzenia i roboty kuchenne


Vegetable cutting attachment

Straining and grating attachment

Gourmet attachment

Slicing disc

for cutting cabbage, onions, cucumbers, radishes, etc.
1.0 mm cutting thickness, approx. capacity of 75 kg/h
2.0 mm cutting thickness, approx. capacity of 150 kg/h
4.0 mm cutting thickness, approx. capacity of 200 kg/h

Sickle blade discs

for cutting soft goods, such as tomatoes, boiled potatoes, leeks, onions, etc.
2.5 mm cutting thickness, approx. capacity of 100 kg/h
4.0 mm cutting thickness, approx. capacity of 150 kg/h
6.0 mm cutting thickness, approx. capacity of 200 kg/h

Adjustable blade disc

for fine and coarse cutting of cabbage, cucumbers, onions, etc.
0-8 mm cutting thickness, approx. capacity of 100-200 kg/h
adjustable blade disc, serrated
(as above, but with serrated blade)

Strip cutting discs

for processing tubers, such as: carrots, kohlrabi, potatoes, celery, etc.
2.0 x 2.5 mm, approx. capacity 50 kg/h
3.5 x 3.5 mm, approx. capacity 75 kg/h
5.0 x 5.0 mm, approx. capacity100 kg/h
5.0 x 7.0 mm, approx. capacity 120 kg/h
7.0 x 7.0 mm, approx. capacity 120 kg/h
7.0 x 10.0 mm, approx. capacity 150 kg/h

Wavy Blade Disc

with wave cut for root vegetables such as: celery, beetroot, carrots, etc.
4.0 mm cutting thickness, approx. capacity 120 kg/h
6.0 mm cutting thickness, approx. capacity 150 kg/h

Adjustable Wavy Blade Disc 3,0 - 8,0 mm

with wavy blades for root vegetables such as: celery, beetroot, carrots, etc.
capacity ca. 120kg/h – 200kg/h

Grating discs

for grating fruit, vegetables, cheese and hard pastry
2.0 mm serration, approx. capacity 50 kg/h
3.0 mm serration, approx. capacity 75 kg/h
4.0 mm serration, approx. capacity 100 kg/h

Raw Fruit and Veg Grating Discs

for grating fruit and vegetables for raw vegetable salads
1.5 mm serration, approx. capacity 40 kg/h
2.0 mm serration, approx. capacity 60 kg/h
3.0 mm serration, approx. capacity 100 kg/h
4.0 mm serration, approx. capacity 120 kg/h

Shredding discs

for shredding tubers, such as carrots, kohlrabi, potatoes, celery, etc.
6.0 mm slice thickness, approx. capacity 200 kg/h
7.0 mm slice thickness, approx. capacity 200 kg/h
9.0 mm slice thickness, approx. capacity 220 kg/h

Potato grating discs

for grating raw potatoes for potato pancakes, potato fritters and potato dumplings, etc. 3 x 3 x 5 mm serration, approx. capacity 100 kg/h

Potato Mashing Discs

for grating raw potatoes for potato pancakes, potato fritters, potato dumplings, etc.
3 x 2 x 2 mm slice thickness
approx. capacity ca. 100 kg/h

Dicing device

consisting of a dicing grid, pusher, cutter bar, basic carrier – insert use additionally necessary
6 x 6 x 6 mm, approx. capacity 150 kg/h
8 x 8 x 8 mm, approx. capacity 150 kg/h
10 x 10 x 8 mm, approx. capacity 150 kg/h
16 x 16 x 8 mm, approx. capacity 150 kg/h
20 x 20 x 8 mm, approx. capacity 150 kg/h

Straining Device

for use with the vegetable cutter and the straining and grating attachment, basic carrier – insert use additionally necessary
1.5 mm hole diameter, approx. capacity 100 kg
2.0 mm hole diameter, approx. capacity 120 kg
3.0 mm hole diameter, approx. capacity 150 kg

Grating Device

only for use with the straining and grating attachment, basic carrier – insert use additionally necessary
2.0 mm serration, blunt, approx. capacity 50 kg
3.5 mm serration, sharpened, approx. capacity 90 kg

WAS Waffle Disc

for waffle cuts (crossed wave cut) for root vegetables, cucumbers, radishes, potatoes, etc.
4.0 mm cut thickness, approx. capacity 30 kg
6.0 mm cut thickness, approx. capacity 35 kg

WS Cube Disks

for cutting small dices of root vegetables, cucumbers, radishes, onions, potatoes, etc.
2.5 mm edge length (2.5 x 2.5 x 2.5), approx. capacity 25 kg
3.5 mm edge length (3.5 x 3.5 x 3.5), approx. capacity 30 kg
5.0 mm edge length (5.0 x 5.0 x 5.0), approx. capacity 35 kg

Technical data

Drive Unit AE 6e

SUPRA- 6e-jednostka-napedowa

complete with stand with dual electromagnetic safety switch and restart protection after a power cut, incl. Ø 62 stainless steel socket and quick-release lock, three-phase current geared motor with integrated motor protection switch, 2 speeds 140/280 rpm; additional on/off switch

Drive Unit AE 6e-T

complete with stand and timer, optional AE 6e equipment: timer with 2 settings for continuous operation and timing, working time limit 1-60 min

Parameter
Value
Type of current
400 V, 50 Hz, 3~ N
Type of protection
IP 54
Motor capacity
0,95 / 1,10 kW
Shaft speed
140 rpm / 280 rpm
Connection cable with 5-pole CEE plug, 16 A
2,5 m
Gross weight
31 kg
Magnetic safety device
Motor protection switch
CE tested
Standard
